Deploying your static site using GitHub Action workflow

Prerequisites

• Basics are explained in the previous post about deploying an artefact
• As you might have guessed already: a GitHub Action workflow requires your repository to be on GitHub.
• Some of the steps in that workflow are specific to my site/project, e.g., the node version, the package manager (yarn, pnpm, npm, …), and so on.
• Set up environment/repository secrets and variables in GitHub

This is actually very similar to the previous post, but instead of on your laptop/pc this happens on a GitHub runner. It deals differently with variables and secrets, to protect your private key or other sensitive information from being leaked accidentally. It also helps with managing those for several environments, but let’s pretend there is no staging first.

Step by step

1. Create .github/workflows/deploy.yml in your project
2. Add trigger

name: 'Deploy artefact'
on:
  workflow_dispatch:

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:

3. Add step: check out the repository

- name: 'Check out repository'
  uses: actions/checkout@v4

4. Add steps: install node and pnpm

- name: 'Install node'
  uses: actions/setup-node@v4
  with:
    node-version: 18
    registry-url: 'https://npm.pkg.github.com'
- name: 'Install pnpm'
  uses: pnpm/action-setup@v4
  with:
    version: 8.6.1
    run_install: false

5. Add steps: install dependencies and build artefact

- name: 'Install dependencies'
  run: pnpm install
- name: 'Build artefact'
  run: pnpm build

7. Add step: prepare deployment and execute deployment via rsync

- name: 'Prepare secrets for ssh connection and execute deployment'
  env:
    DEPLOY_KEY: ${{ secrets.DEPLOY_KEY }}
    SSH_PASS: ${{ secrets.SSH_PASS }}
    USER: ${{ vars.REMOTE_USER }}
    HOST: ${{ vars.REMOTE_HOST }}
    DIR: ${{ vars.REMOTE_DIR }}
  run: |
    mkdir -p ~/.ssh
    echo "$DEPLOY_KEY" > ~/.ssh/id_ed25519
    chmod 600 ~/.ssh/id_ed25519
    ssh-keyscan -t ed25519, "$HOST" >> ~/.ssh/known_hosts
    eval "$(ssh-agent -s)"
    echo "$SSH_PASS" | ssh-add <(echo "$DEPLOY_KEY")
    rsync -avzr -e 'ssh -o StrictHostKeyChecking=no -v' --delete ./dist/ "${USER}"@"${HOST}":/var/www/html/"${DIR}"

Obviously, it is the step that is the most complex one. Let’s analyse what happens there:

env:
    DEPLOY_KEY: ${{ secrets.DEPLOY_KEY }}
    SSH_PASS: ${{ secrets.SSH_PASS }}
    USER: ${{ vars.REMOTE_USER }}
    HOST: ${{ vars.REMOTE_HOST }}
    DIR: ${{ vars.REMOTE_DIR }}

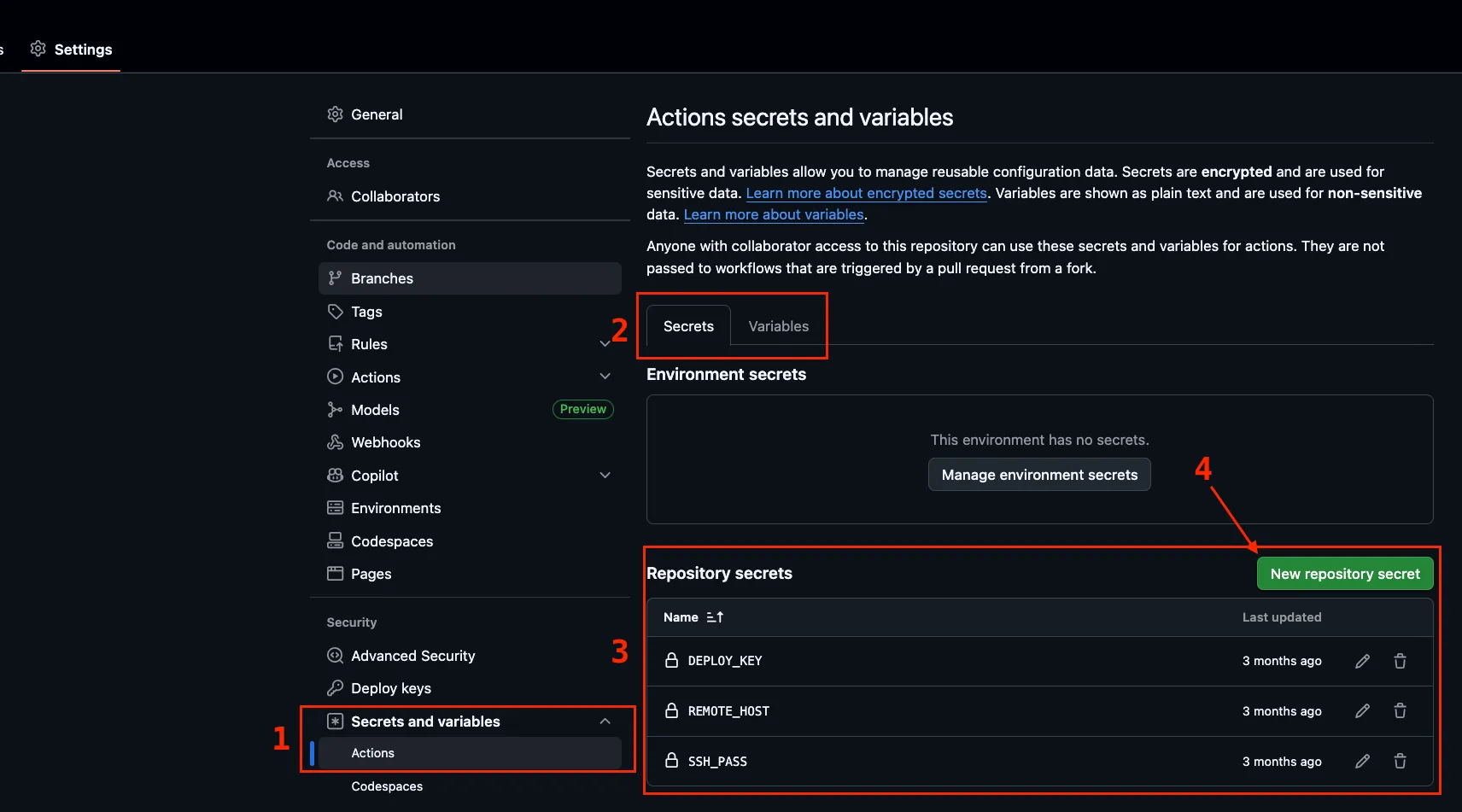

Additionally to the action, I stored two secrets and three variables in GitHub.

1. DEPLOY_KEY: the private ssh key necessary to access the vps via ssh
2. SSH_PASS: the corresponding passphrase for the private key
3. USER: name of the user the private ssh key belongs to
4. HOST: ip address of the vps

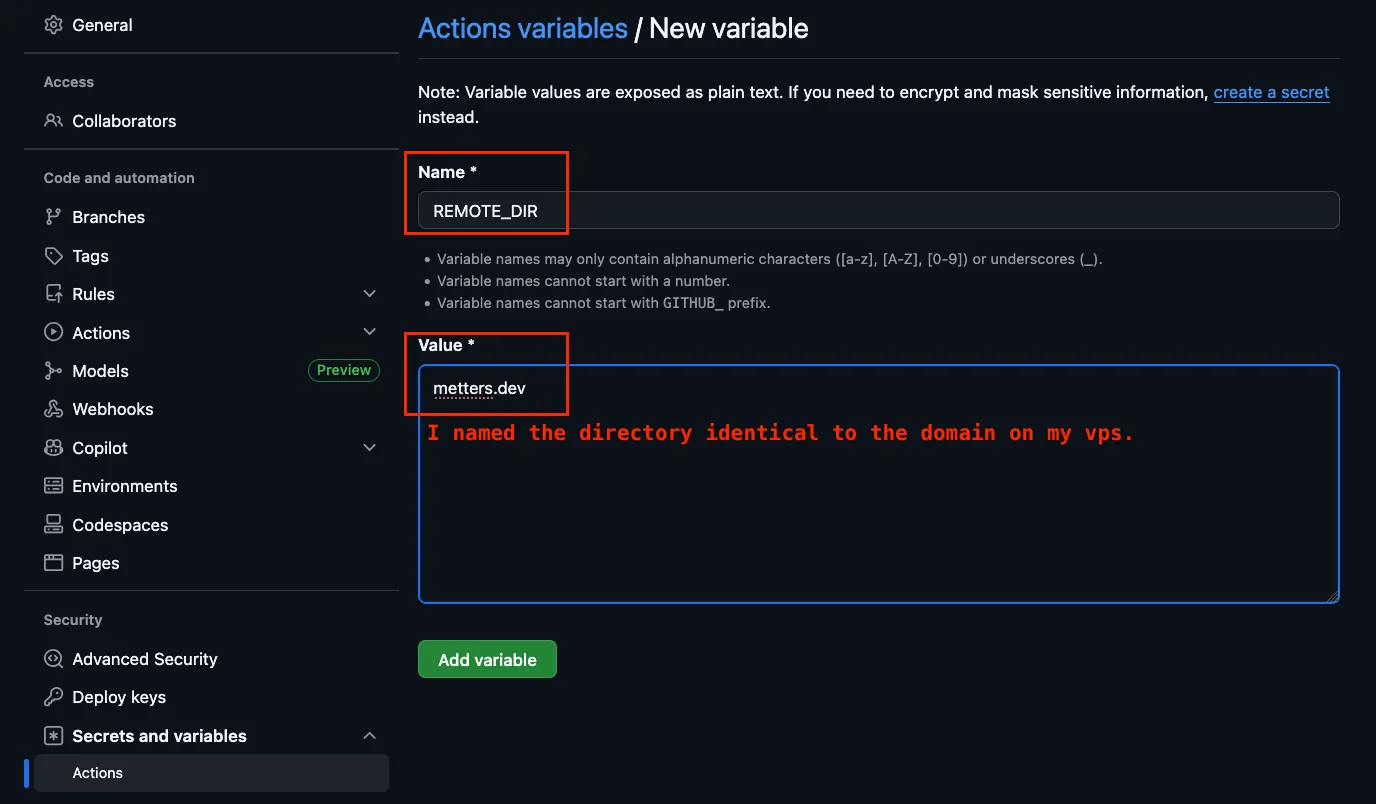

5. DIR: name of the directory on the vps that contains the artefact

Next, the ssh key needs to be stored on the runner (which is also a Ubuntu machine):

mkdir -p ~/.ssh
echo "$DEPLOY_KEY" > ~/.ssh/id_ed25519
chmod 600 ~/.ssh/id_ed25519

• After that, the ssh key is added to the known_hosts file and associated to the remote host ($HOST):

ssh-keyscan -t ed25519, "$HOST" >> ~/.ssh/known_hosts

Before we can open a ssh connection we need to start the ssh agent and add the private key together with its corresponding passphrase to the ssh agent:

eval "$(ssh-agent -s)"
echo "$SSH_PASS" | ssh-add <(echo "$DEPLOY_KEY")

Finally, the artefact can be deployed via rsync to the configured :

rsync -avzr -e 'ssh -o StrictHostKeyChecking=no -v' --delete ./dist/ "${USER}"@"${HOST}":/var/www/html/"${DIR}"

Troubleshooting

Why can I not find my manually triggered workflow?

An ‘instance’ of the workflow must first exist on the main branch of your repository. After you have merged your workflow into your main branch, it will show up in Actions

But I don’t want to test my workflow on my main branch

• Register dummy file with manual trigger on main
• Then work on ti branch

The deployment step does not work as expected

• Please check whether you have properly set up your environment/repository variables and secrets.
• Please check whether the user that technically executes the deployment (the owner of the private key) has ownership of the directories on your vps.
• Please read the error logs of the failed run.
